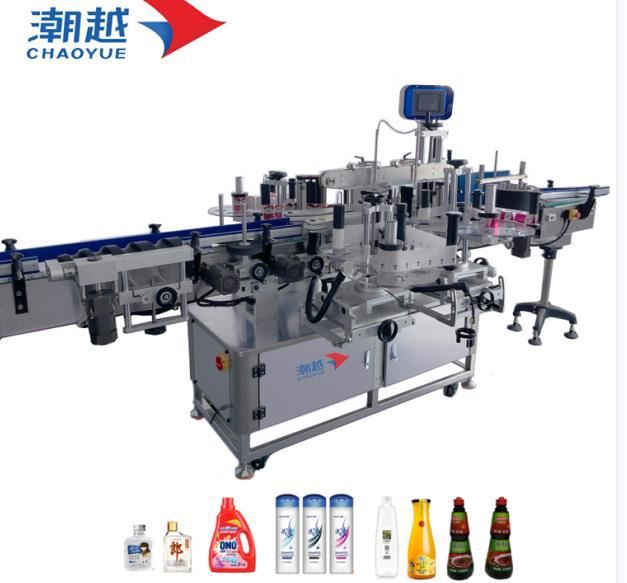

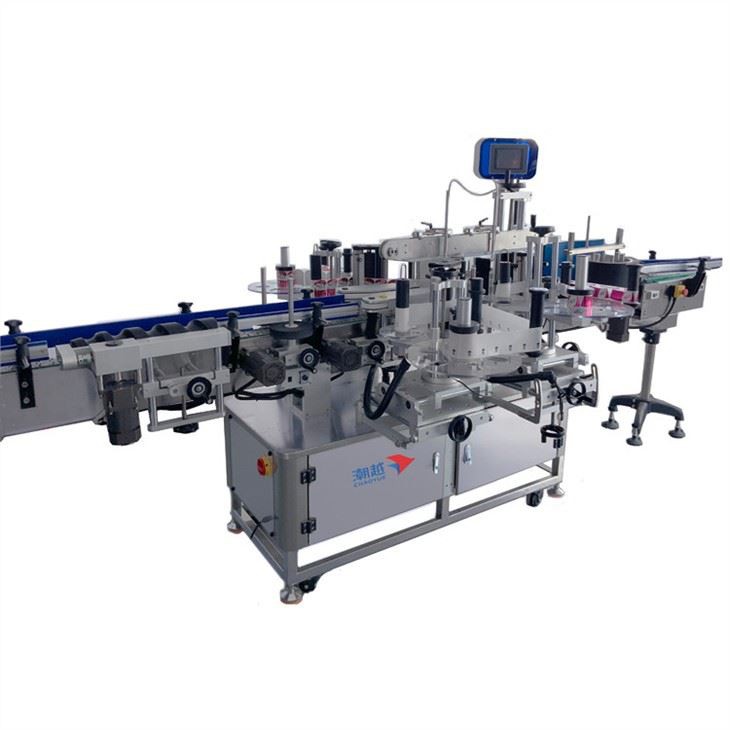

Tamp Label Applicator
This tamp label applicator is a multi-functional labeling machine, it is suitable for double-sided, single-sided and three-sided labeling of square or flat products. It is not only easy to adjust, but also has a wide range of applications. The mutual conversion of objects of various sizes can be...
This tamp label applicator is a multi-functional labeling machine, it is suitable for double-sided, single-sided and three-sided labeling of square or flat products. It is not only easy to adjust, but also has a wide range of applications. The mutual conversion of objects of various sizes can be completed with only a few adjustments.
product detailed information
producing speed | Labeling speed within 12000 bottles/hour (depending on the actual bottle type and label length) |
product name | Tamp Label Applicator |
label max width | 200mm |
label max length | 500mm |
bottle min thickness | 25 |
bottle max thickness | 100mm |
bottle min height | 30 |
bottle max height | 350mm |
label inner diameter | φ76mm |
label outer diamete | Φ380mm |
（LxWxH）outline size | L3048 W1700 H1800 (mm) |
using power | 220V 50Hz 3500W |
labeling accuracy | ±1mm |
①：label component
②：label motherboard
③：reteieve backing paper
④：laber chassis
Features
1. Using German and Japanese sensors for detection, high sensitivity and easy adjustment, ensuring the labeling accuracy.
2. Servo motor drive, real closed-loop control, high-precision subdivision, built-in absolute encoder, to meet high-speed and high-precision positioning.
3. Eight-dimensional space adjustment of the header, powerful and flexible adjustment ability, accurate labeling of any product can be adjusted within a few minutes.
4. The new elastic shaping mechanism has a good shaping effect on the bottle with a larger arc surface and ensures the labeling accuracy.
5. Advanced and friendly independent man-machine interface control, operating parameters can be stored and recalled, any abnormal conditions are displayed by the man-machine interface, and guide troubleshooting, simple operation, anyone can easily operate and use the device quickly.
The workflow of this tamp label applicator is that the product is manually loaded (or conveyed by the upstream conveyor belt) → conveyed by the plate chain conveyor belt → material distribution → the shaping mechanism corrects and arranges the shape of the product → pressure belt pressing → electric eye detection → The agency receives the electric eye signal and sends the label → the label is quickly sent to the product that needs to be labeled → the label is pressed → the finished product is output through the plate chain conveyor belt
FAQ
Q1. What is the lead time ?
A1. Generally if we have stock, we will deliver the machine in one week. If it need custom made, the lead time will be around 20-50 days which depends on the real situation.
Q2. How about your packing?
A2. Professional export package,wooden case
Q3. What are your payment terms?
A3. T/T in advance
Q4. How should we do if we meet troubles while production?
A4. About our after sale service, if any problems or operation questions, we will show you how to solve it or offer the suggestion accordingly. Also you can send the machine back for repairing or our engineer will go to check it.
Q5. How does your factory control the quality?
A5. Quality is very important, we take much attention to control our quality from raw materials to the end. We will test every machine before it leaves our factory to make sure it's working good. Our factory has passed ISO. We also have audit periodically to make sure our products qualified.
