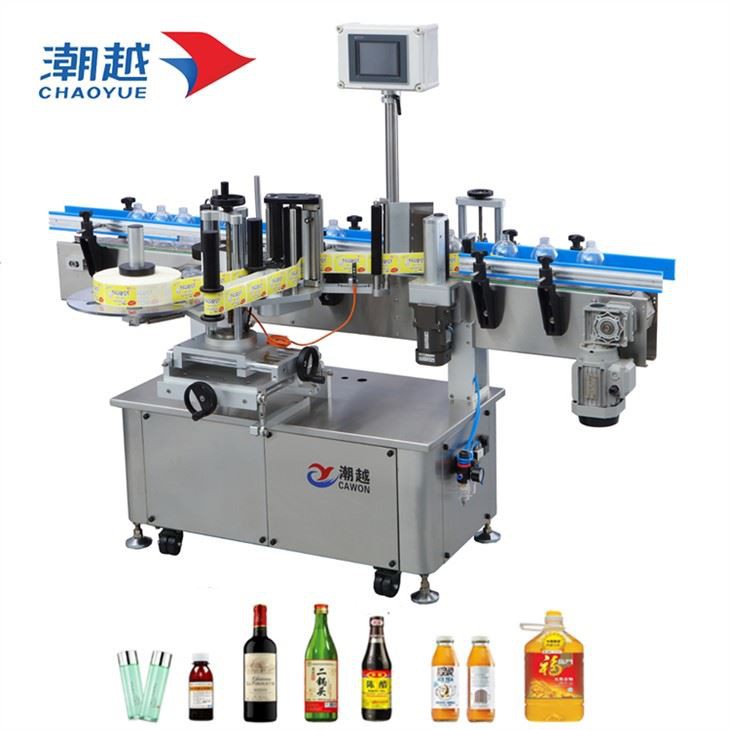

Wine Bottle Label Applicator
The wine bottle label applicator has many advantages, small footprint and lightweight design, ideal for use in tight spaces. It is the best choice for automatic labeling in such a small form factor. Additionally, it can be connected to a bottle unscrambler for added bottle feeding and bottle returning capabilities.
The wine bottle label applicator has many advantages, small footprint and lightweight design, ideal for use in tight spaces.
PLC control provides fully automatic processing, fast labeling speed, saving your precious time,
It is the best choice for automatic labeling in such a small form factor.
Additionally, it can be connected to a bottle unscrambler for added bottle feeding and bottle returning capabilities.
PRODUCT DETAILS
Basic Information | Parameter details |
Product number | wine bottle label applicator |
Labeling speed | Max.3600 bottles/hour |
Bidding speed | 45m/min |
Labeling accuracy | ±1mm |
Label max width | 165mm |
Label max length | 500mm |
Bottle min diameter | 30 |
Bottle max diameter | 150mm |
Bottle min height | 30 |
Bottle max height | 350mm |
Label inner diameter | Φ76mm |
Label outer diameter | Φ380mm |
Outline size | L2000 W1200 H1650 (mm) |
Using power | 220V 50Hz 1500W |
Air source | 4-6KG 30L/min |
1. HMI
2. bottle divider
3. Conveyor Line Components
4. bid composition
5. Peeling board
6. Round bottle mechanism
7. Block bottle components
8. Chassis Components
1wine bottle label applicator is lightweight and user-friendly design: Compared with ordinary automatic labeling machines, the size is small enough to sit on the table, and it is large and not easy to move.
2wine bottle label applicator automatic photoelectric sensor: intelligent control of labeling and product detection, it has automatic label calibration and detection to avoid any label waste.
3 Automatic Product Feeding: Automatically separates products to improve stability by eliminating tiny dimensional differences between each bottle.
4 Stainless steel body: elegant appearance, no deformation, high-quality 304SS material in line with GMP standards, providing the best experience.
5 BEST IMPORTED COMPONENTS: The best components are carefully selected to build the machine, ensuring high quality and long service life.
6 Automatic batch processing: easy to operate and maintain, reduce labor costs and improve efficiency.
7 Multi-function: automatic counting down to save power, automatic power saving settings, etc.
8 Touch Screen Controls: Easy to control and switch different settings, it has a user interface with a guide.
9. High labeling stability: the labeling is straight, no bubbles, and no creases.
