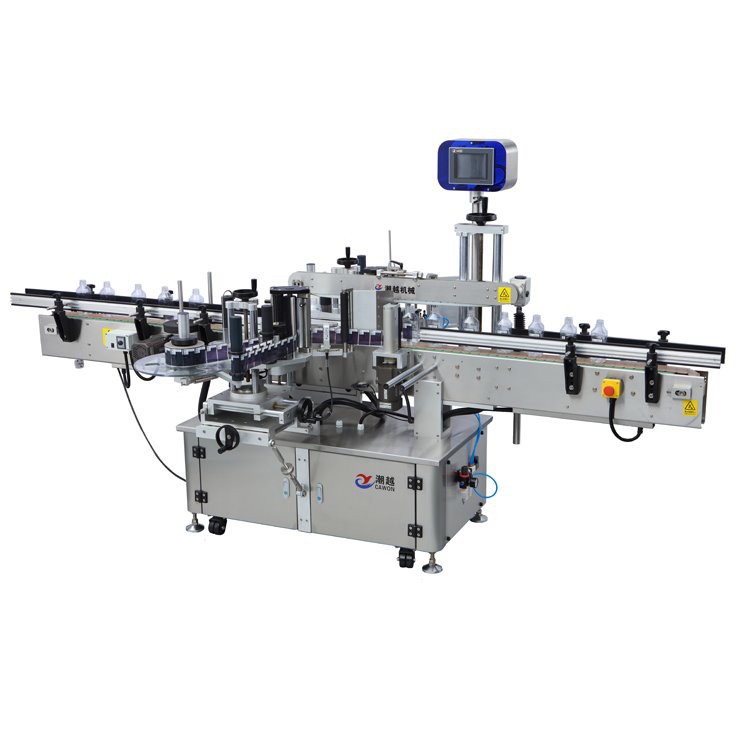

Automatic Flat Wine Bottle Labeling Machine
This Automatic Flat Wine Bottle Labeling Machine is widely used in food, beverage, medical, chemical and other industries.
Product Description
This Automatic Flat Wine Bottle Labeling Machine can realize the labeling and labeling functions of double-sided circumferential surface at the same time, which can meet the requirements of single-sided and double-sided labeling of flat bottles, square bottles and bottle-shaped bottles, full-circle cylindrical and semi-circular labeling, and is widely used in Cosmetics industry, daily chemical industry. Optional tape printer and inkjet printer are available to print the production date on the label and batch information for labeling.
APPLICETION
1. For labels: self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, etc.
2. Applicable products: labeling on the side plane, side sweep surface and circumferential surface is required.
3. Industry: Widely used in cosmetics, daily chemicals, electronics, pharmaceuticals, hardware, plastics and other industries.
4. Application examples: shampoo horizontal bottle labeling, lubricating oil flat bottle labeling, fresh wine labeling.
Basic Information | Parameter details |
Product number | Automatic Flat Wine Bottle Labeling Machine |
Labeling speed | Max.12000 bottles/hour（Depends on actual bottle shape and label length） |
Bidding speed | 60m/min |
Labeling accuracy | ±1mm |
Label max width | 200mm |
Label max length | 500mm |
Bottle min thickness: | 25mm |
Bottle max thickness: | 100mm (More than this value needs to be customized) |
Bottle min height: | 30 |
Bottle max height: | 350mm(More than this value needs to be customized) |
Label inner diameter： | Φ76mm |
Label outer diameter： | Φ380mm |
Outline size： | L3048 W1700 H1800 (mm) |
Using power： | 220V 50Hz 1500W |
FEATURE
1. All labeling machines are made of SUS304 stainless steel
2. The labeling machine can be equipped with a round bottle device
3. The labeling machine avoids many problems such as manual labeling, skewed labeling, bubbles, wrinkles, irregular labeling, etc.
4. The labeling machine is equipped with an electric eye to improve the precision of cutting off the label material.
The labeling machine is controlled by an equivalent PLC, positioning module, stepper motor and sensor electrical control system.
