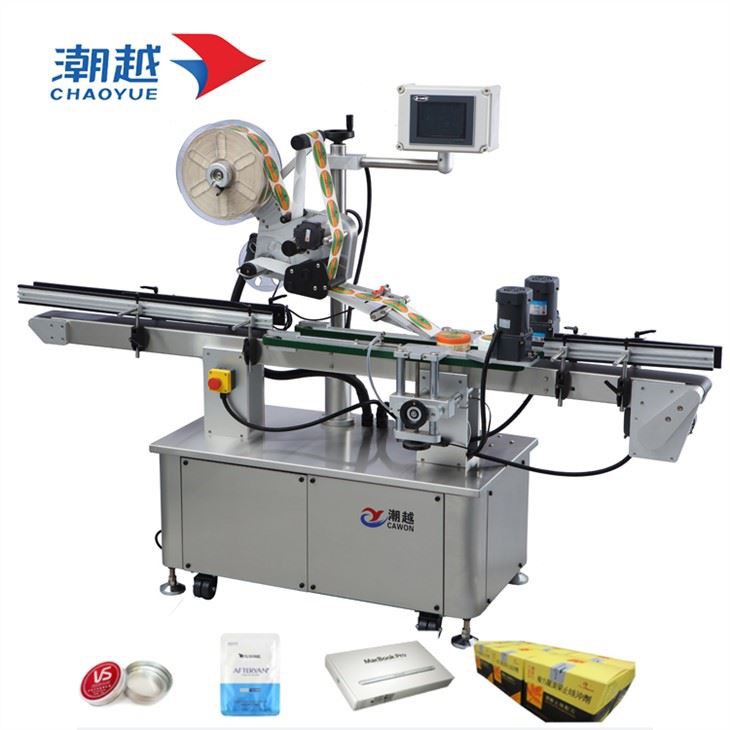

Fully Automatic Plane Labeling Machine
The fully automatic plane labeling machine is a multifunctional labeling machine, which is suitable for flat labeling of square or round bottle products. This model is easy to adjust and has a wide range of applications. It only needs a small amount of adjustment to complete the mutual conversion of objects of various sizes. Product clamping belt mechanism to achieve higher precision labeling.
The fully automatic plane labeling machine is a multifunctional labeling machine, which is suitable for flat labeling of square or round bottle products. This model is easy to adjust and has a wide range of applications. It only needs a small amount of adjustment to complete the mutual conversion of objects of various sizes. Product clamping belt mechanism to achieve higher precision labeling.
Product name | fully automatic plane labeling machine |
Product number | CY-070 |
Producing speed | 3000-5000B/H Base on your bottle |
labeling accuracy | ±1mm |
label max width | 150mm (more than this value needs to be customized) |
label max length | 500mm |
label inner diameter | φ76mm |
label outer diameter | Φ380mm |
(LxWxH)outline size | L2000xW1000xH1800 (mm) |
Equipment weight | 200kg |
using power | 220V 50Hz 1500W |
1. Human-machine interface (Chinese and English translation, with random help system)
2. Labeling head (labeling the product)
3. Clamping belt mechanism (clamping products)
4. Label tray (storage labels)
5. Conveying line (conveying products)
6. Chassis
Product features
1. Using German and Japanese sensors for detection, high sensitivity and easy adjustment, ensuring the labeling accuracy.
2. Servo motor drive, real closed-loop control, high-precision subdivision, built-in absolute encoder, to meet high-speed and high-precision positioning.
3. Eight-dimensional space adjustment of the header, powerful and flexible adjustment ability, accurate labeling of any product can be adjusted within a few minutes.
4. Advanced and friendly independent man-machine interface control, operation parameters can be stored and recalled, any abnormal situation will be displayed by the man-machine interface, and guide troubleshooting, the operation is simple, anyone can easily operate and use the device quickly.
5. It adopts imported electrical components from world-renowned brands, the control system adopts Siemens PLC, and the labeling station adopts Japan's Panasonic servo motor to ensure the lasting stability and reliability of the whole machine.
This model is CY-070 fully automatic plane labeling machine, the whole machine is perfectly designed, high-performance control and detection system, to ensure fast and accurate labeling, more man-machine interface operation, with random help system, simple and convenient operation , so that you really have no worries.
